PI-21100 Pattern Card Options

Products > Pattern Generator > Ordering > Pattern Card Options

Each PI-21100 Pattern Card must be ordered with three specified options:

  • FIFO size
  • Programmable Delay option
  • Output voltage

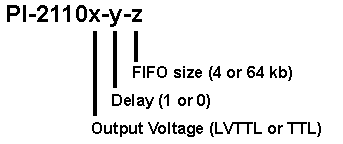

When ordering, please specify a model number with the following format:

For example, a PI-21100-0-4 would have a LVTTL outputs, no delay, and 4 Kb FIFO. A PI-21101-1-64 would have TTL outputs, the optional delay, and 64 Kb FIFO.

Order # Description
PI-2110x-y-z 16 channel Pattern Card with 64 kb pattern memory per channel. Please specify options as described below.

Requires PI-2005 Pattern Generator and one or more output cables
x - output voltage "0" for LVTTL outputs
"1" for TTL outputs
y - delay "0" for no delay
"1" for 0 - 6.6 ns programmable delay
z - FIFO size "4" for 4 Kb FIFO per channel
"64" for 64 Kb FIFO per channel. Please consult factory for availability
88001030-1 4 channel output cable for PI-2110x Pattern Card. Mass-terminated Micro-D to 4 BNC connectors. 6' length
88001035-1 4 channel output cable for PI-2110x Pattern Card. Mass-terminated Micro-D to 4 SMA connectors. 12"' length
88001035-6 4 channel output cable for PI-2110x Pattern Card. Mass-terminated Micro-D to 4 SMA connectors. 6' length
88001060-6 Eight channel output cable for PI-21100 Pattern Card.  2 X Micro-Ds to 8W8 Conec connector. 6' length

Contact Pulse Instruments Sales at (310) 515-5330 or by email at sales@pulseinstruments.com

Prices valid as of 7/31/01. All prices subject to change without notice. Please contact factory for a quotation and availability.
