PI-31001 PI-Bus Interface Card

Accessories > Interfaces > PI-31001

Features:

  • PI-4001 Replacement
  • Programs Instrument Cards
  • Requires One CPCI Slot

Applications:

  • Series 4000 Instrument Control

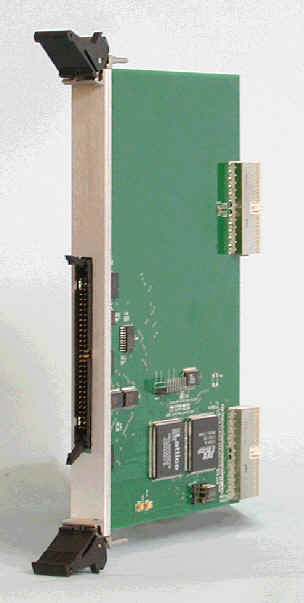

PI-31001 PI-Bus Interface Card

Introduction:

The Pulse Instruments PI-31001 PI-Bus Interface Card is a replacement for the 4001 Control Mainframe.

It is designed to drive the 4000 Series' PI-Bus from the CompactPCI mainframe. The included PI-Controller control software controls 4000 Series commands to be sent over the PI-Bus via the PI-31001. The PI-Bus Interface Card maintains the Optical isolation between the control unit and the instrument mainframe as in the PI-4001.  This prevents the transfer of digital noise from the CompactPCI chassis to the instrument mainframes. The PI-31001 can control up to seven PI-4002 Instrument Mainframes over a maximum cable length of 20 feet.  The PI-Bus connector is for the shielded ribbon cable as used on the 40090-A-X interconnect cable.

Ordering Information:

Contact Pulse Instruments Sales at (310) 515-5330 or by email at sales@pulseinstruments.com
